MTC-1 Magnetic Torch Cleaner

The next evolution in MIG welding torch consumable cleaning equipment is now available.

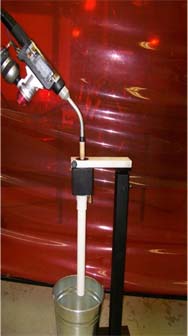

MTC-1 picture

The MTC-1 removes weld spatter deposits from the contact tip, diffuser and from inside and outside the gas nozzle utilizing an electromagnetic process. A strong magnetic field is produced instantaneously and held briefly via a cleaning coil that loosens the accumulated spatter from the nozzle & torch consumables and pulls it away. The result is a touch less torch consumable cleaning method that increases the serviceable life of the gas nozzle, contact tip and diffuser. Use in conjunction with Loctite SF 7900 ceramic polymer spray shield coating, for spatter & thermal protectant on the torch consumables to obtain optimal performance.

Features & Benefits

  • Non-contact Automatic Nozzle/Tip Cleaning
  • No moving parts to wear out & replace
  • Simple Installation & Programming
  • 120Vac 50/60Hz
  • Eliminates programming the nozzle to reamer blade relationship
  • Consumables are not damaged during the cleaning operation
  • Prolongs the life cycle of torch consumables
  • Cleans any nozzle bore size & tip configuration
  • 24"x20"x12" Control Enclosure
  • 15-20 second recharge time
